Challenge
The original metal windlass rope stop failed in service — the working end fractured off the splined hub. Without a practical OEM replacement, the windlass could not hold or control line reliably.
Reverse Engineering · Case study
Windlass Rope Stop
Failed metal stop · engineered replacements
A fractured windlass rope stop was documented on deck, rebuilt in CAD, and reproduced as engineered replacements — including finished coated parts and a polymer option — so the windlass could return to reliable service without OEM availability.
- Vessel type
- Sailboat / yacht windlass deck hardware
- Location
- Florida
- Material
- Engineered metal and polymer options
Engineering approach
The failed part was photographed on the vessel, the spline interface and arm geometry were rebuilt in CAD, and replacement options were produced to restore the same drive interface while improving durability for marine service.
Result
Engineered windlass rope stops were produced for the same splined interface, giving a clear path from broken original to CAD to finished parts ready for installation.
The problem
The metal windlass rope stop fractured in service. The spline hub remained, but the working end was gone — and a drop-in OEM part was not available on a useful timeline.

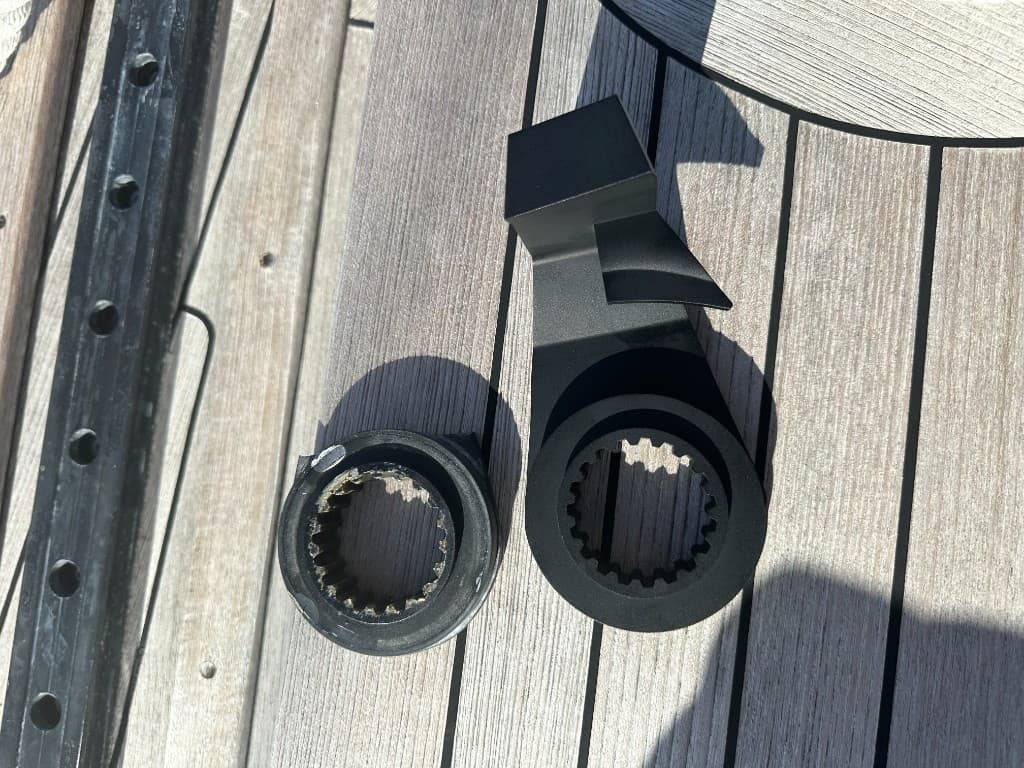

Inspection & documentation

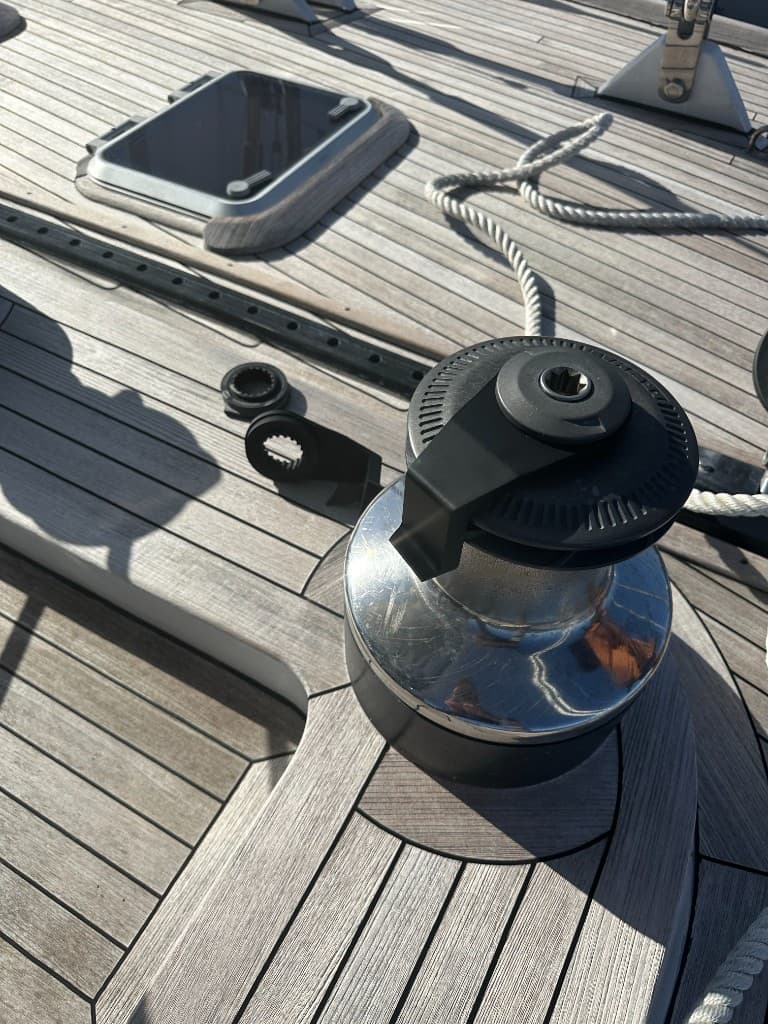

Failed and replacement parts were photographed on deck so the break, spline wear, and overall geometry could be compared directly.
Engineering approach
We rebuilt the stop around the original splined drive interface, preserving fit while choosing materials and section that better survive marine duty.

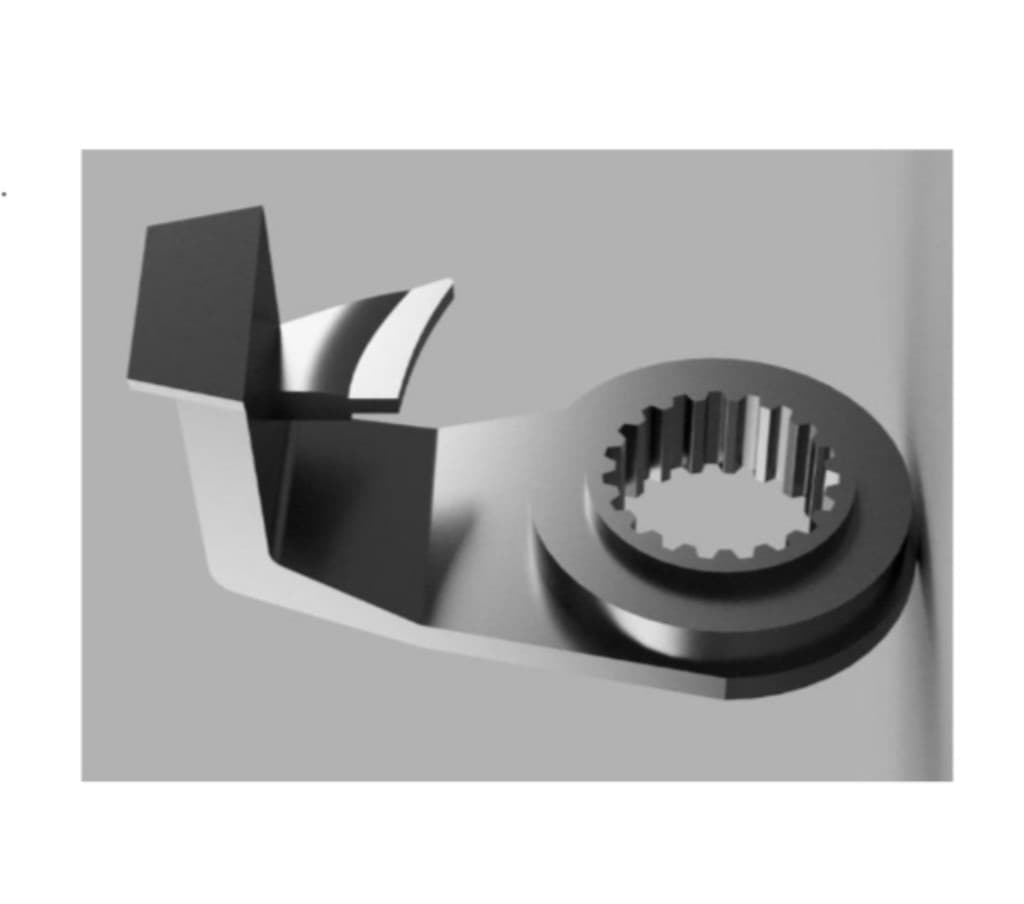

CAD & documentation
A manufacturing-ready CAD model captured the spline, arm bend, and working end so shops could produce consistent replacements.
Material, process & manufacturing support
Replacement parts were produced through coordinated fabrication — including coated metal finishes and a polymer option evaluated against the failed original.

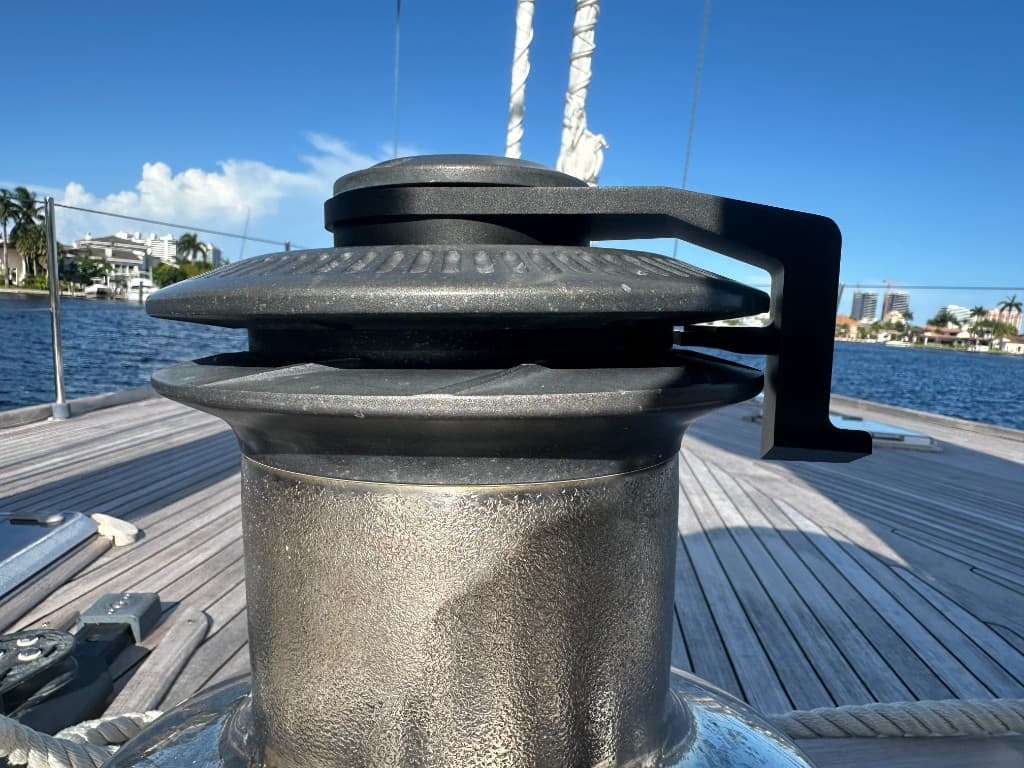

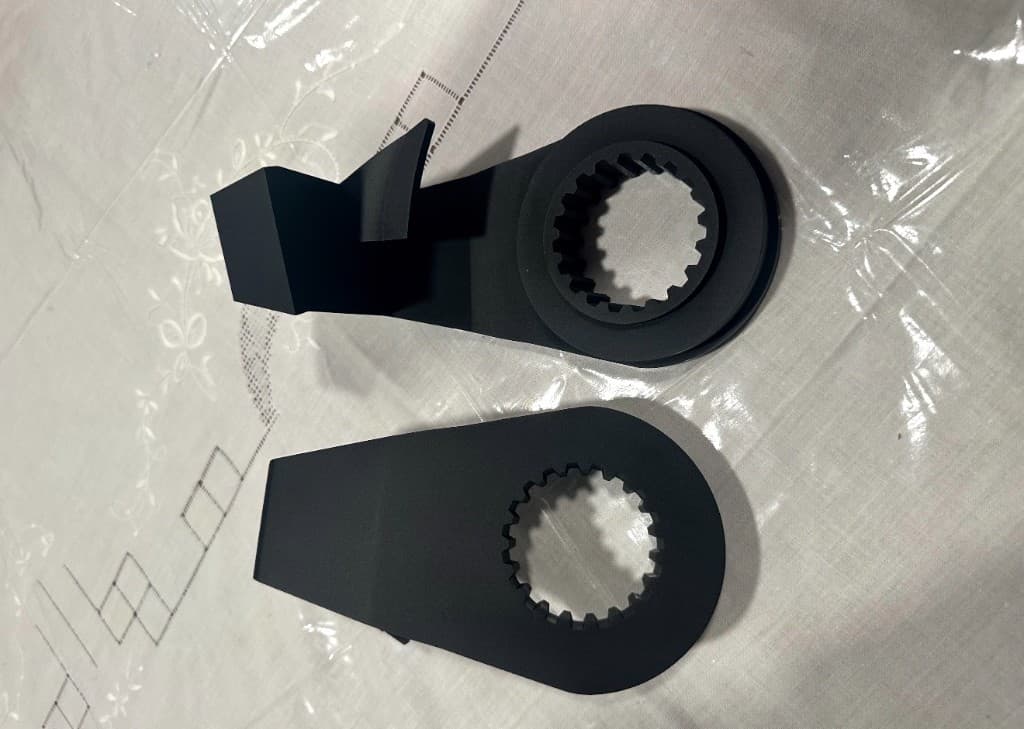

Finished parts
Completed rope stops were ready for install on the same spline interface, with clear before/after documentation for the owner and crew.
Result
A broken, unavailable windlass rope stop became a documented engineering package: CAD, finished parts, and a practical path back into service.
Materials & processes
- Coated metal replacement
- Engineering polymer option
- CAD reverse engineering
- CNC / partner fabrication
- Fit check against original spline interface
