01
Send It
Ship us the component or schedule an inspection.
Marine reverse engineering
The part doesn't exist?We'll engineer it.
Reverse engineering and custom marine components for yachts, boats, marinas, and marine service companies—when OEM parts are gone, undocumented, or impractical to source.
Process map
RE → CAD → MFG

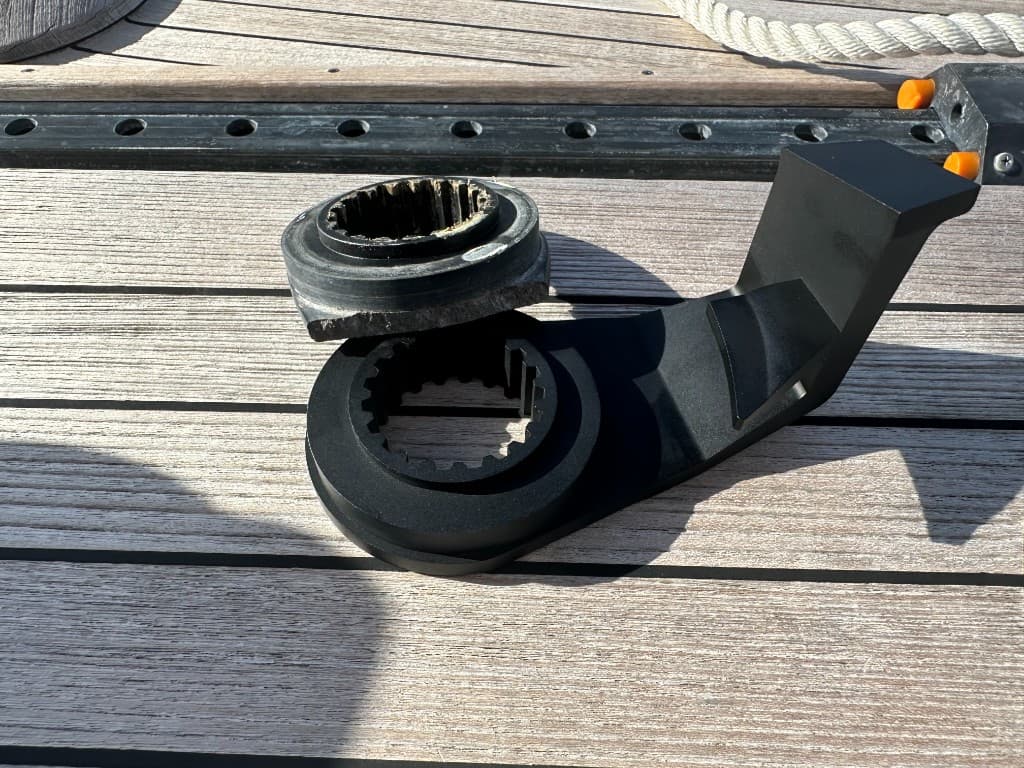

- 01Broken Component
- 02Measurement / Scan
- 03CAD Model
- 04Engineering Drawing
- 05Finished Part
Broken component → measurement/scan → CAD model → engineering drawing → finished part
The problem
When replacementisn't an option.
Marine components frequently become impossible to source through normal channels. When that happens, the vessel or system can sit idle over a single part.
- Discontinued
- Obsolete
- Corroded
- Broken
- Unavailable
- Extremely expensive from the OEM
- Delayed by long lead times
Send us the existing component, drawings, measurements, or photographs. We reverse engineer what remains, create the engineering documentation, and help manufacture a replacement that gets systems back in service.
Send Us the PartMethod
From physical partto manufacturable data.
The work is visual and technical: measure what remains, reconstruct what matters, and deliver documentation shops can run with.
Recover usable geometry from damaged, obsolete, or undocumented parts.
Build production-ready models with clear interfaces and manufacturable intent.
Prototype, machine, or fabricate through the process that fits the component.
How it works
Four stages.One clear path.
A structured engineering workflow from intake through documentation and production support.
02
Engineer It
We measure, inspect, scan when appropriate, and recreate the component in CAD.
03
Make It
The component can be prototyped, machined, fabricated, printed, or produced through qualified manufacturing partners.
04
Get Back on the Water
Receive the replacement component and available engineering documentation.
Services
Engineering throughmanufacturing support.
From reverse engineering and CAD to prototyping, machining coordination, and documentation.
Service
Reverse Engineering
Recreate obsolete, damaged, unavailable, or undocumented marine components.
Service
CAD Modeling
Production-ready 3D models and detailed engineering drawings.
Service
Custom Component Design
Design brackets, adapters, mounts, housings and other purpose-built marine components.
Service
Replacement Parts
Engineer alternatives when OEM components are unavailable or impractical.
Service
Prototyping
Rapidly evaluate fit, function, and geometry before final production.
Service
CNC Machining
Coordinate precision-machined components from appropriate materials.
Component examples
What can we engineer?
If you can remove it, photograph it, measure it, or ship it to us, there's a good chance we can engineer it.
- Brackets
- Mounts
- Housings
- Bushings
- Spacers
- Shafts
- Adapters
- Pump components

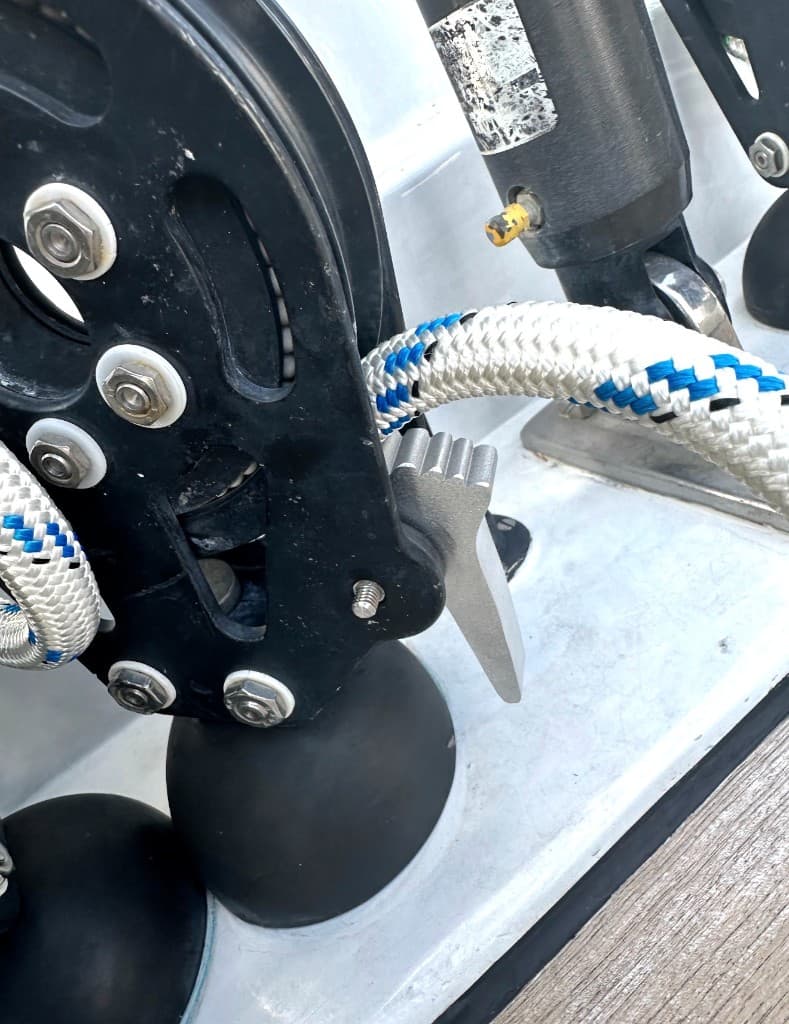

- Deck hardware
- Engine-room components
- Instrument mounts
- Electrical enclosures
- Specialty fittings
- Interior hardware
- Legacy components
- Custom assemblies
Industries
Built for marineoperations & service.
We work with the people responsible for keeping vessels and marine systems operational.
Luxury Yachts
Discontinued fittings, custom mounts, and engineered replacements that keep systems serviceable without waiting on unavailable OEM inventory.
Recreational Boats
Practical reverse engineering for owners and mechanics dealing with broken, corroded, or no-longer-made components.
Commercial Vessels
Support for operators who need durable replacements and clear documentation when downtime is expensive.
Marinas
Engineering help for marina teams supporting vessels with hard-to-source mechanical and structural parts.
Boatyards
CAD, measurement, and manufacturing coordination that fits into haul-out and repair schedules.
Marine Repair Companies
A technical partner when a repair stalls because one component no longer exists in the supply chain.
Yacht Refit Companies
Adapters, mounts, housings, and redesigns that bridge existing systems with new equipment.
Marine Equipment Manufacturers
Modeling, documentation, and small-batch support for specialty components and legacy product lines.
Engineering philosophy
Aerospace discipline.Marine practicality.
We apply disciplined engineering principles with a focus on fit, function, and serviceability in real marine environments—without overstating credentials or approvals.
The work is technical, but the outcome is practical: a component that can be manufactured, installed, and relied on. Documentation is treated as part of the deliverable—not an afterthought.
- Accurate dimensional documentation
- Material consideration
- Manufacturability
- Fit and tolerance evaluation
- CAD documentation
- Inspection
- Traceability where appropriate
- Practical serviceability
